The purpose of a power transformer is to convert voltage from a high voltage (transmission line) to a low voltage (consumer). The transformer is an electrical device that transfers electric energy by electromagnetic induction.
Transformers play a crucial role in electrical systems, serving as both single-phase and three-phase power supply units across power generation plants, substations, distribution networks, and industrial equipment as step-down regulators. In this article, we will explore the primary purpose of a power transformer.
A power transformer is an essential electrical device used to change the voltage level of alternating current (AC) without altering its frequency. It operates on the principle of electromagnetic induction and plays a vital role in power transmission and distribution. Transformers can either increase (step up) or decrease (step down) voltage levels to suit different applications. Below are some common types of transformers:
Step-up and step-down transformers are among the most commonly used types. A step-up transformer increases the input voltage to a higher output voltage, making it ideal for transmitting electricity over long distances to reduce energy loss. It is often used in power plants and substations.
On the other hand, a step-down transformer reduces the input voltage to a lower output voltage, making it suitable for domestic and industrial usage where lower voltage levels are required for safety and compatibility with equipment.
These transformers are fundamental in ensuring efficient and safe power delivery across different stages of the electrical grid.
A distribution transformer is a critical component in the electrical power distribution system. Its primary function is to step down the high voltage from distribution lines to a lower voltage suitable for end-user consumption, such as in homes, offices, or industrial facilities.
The development of efficient and practical transformers was pivotal in enabling widespread AC power distribution, which had previously been limited to large-scale industrial applications.
Typically, distribution transformers have an output rating below 100 kVA, though many units fall within the range of 16 kVA to 3,500 kVA. While most are single-phase, higher-capacity models can be three-phase units, especially in commercial or industrial settings.
These transformers are commonly found in electrical substations or at the service entry point of large buildings or building complexes. Smaller units may be mounted on utility poles or installed in underground enclosures for urban and residential use.
Designed for durability and reliability, distribution transformers often have operational lifespans of 30 years or more. Modern designs can support power ratings up to 3,000 kVA, supplying entire neighborhoods with electricity. They typically receive high-voltage input ranging from 12 kV to 69 kV.
The output, or secondary voltage, varies based on regional standards. For instance, in Australia, it is common for an 11 kV primary input to be stepped down to 415 V (phase to neutral) for end-user applications.
A current transformer (CT) is a type of instrument transformer specifically designed to produce an alternating current in its secondary winding that is proportional to the current flowing through its primary circuit. It is primarily used for current measurement, monitoring, and protection in high-voltage systems.
Current transformers, along with voltage (or potential) transformers, fall under the category of instrument transformers. These devices serve a dual purpose:
1. Scaling down high current or voltage levels to smaller, standardized values suitable for metering and relay protection.
2. Isolating measurement and protection equipment from the high-voltage power system to ensure safety.
Typically, the secondary output of a current transformer is standardized at 5 A or 1 A, which allows for consistent and simplified metering and relay design. Although this transformation may introduce slight measurement inaccuracies, it provides a practical balance between safety, usability, and precision.
To ensure performance and safety, current transformers are designed in accordance with international standards set by organizations such as the International Electrotechnical Commission (IEC).
A power transformer is an essential electrical device used to transfer electrical energy between two or more circuits through electromagnetic induction. Its primary purpose is to step up or step down voltage levels, enabling efficient transmission and distribution of electricity over long distances.
In the National Power Grid, power transformers play a crucial role in converting high-voltage alternating current (AC) generated at power plants into lower voltages suitable for residential and commercial use. While transformers themselves do not convert AC to direct current (DC), they are often part of larger systems where such conversions occur—typically using rectifiers after voltage adjustment. This facilitates the safe and efficient delivery of electricity across vast distances via transmission lines.

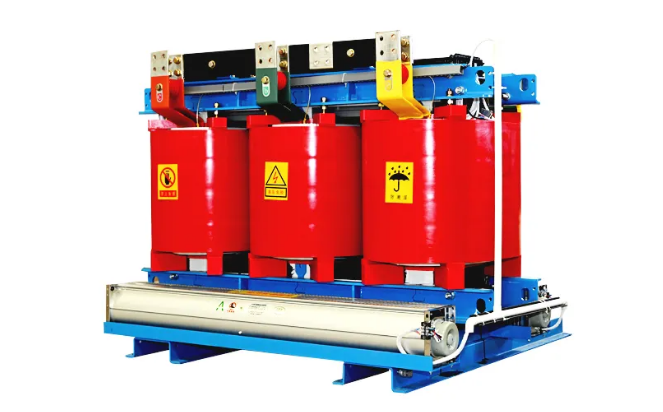

The dry-type power transformer is a specialized piece of electrical equipment commonly used in industrial and mining enterprises, commercial buildings, and other public facilities. Its main function is to convert power distribution voltage levels safely and efficiently. Dry-type transformers are made with high-quality silicon steel sheets known for excellent magnetic conductivity.

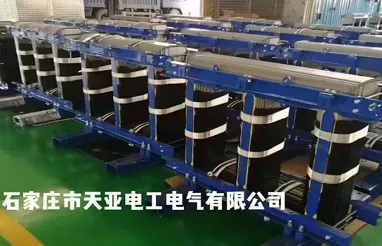

The magnetic core is produced using advanced vacuum pressure casting technology, resulting in a compact, lightweight design with a tightly bound core. The windings are made of enameled wire and are fully encapsulated, allowing for direct indoor installation without the need for an oil tank or external cooling system. This significantly enhances safety, as there is no risk of oil leakage or fire, making it ideal for use in indoor environments, especially in areas close to human activity.
Oil-immersed transformer is a high-performance product that combines reliable quality with competitive pricing. It incorporates advanced manufacturing technologies from both domestic and international sources to ensure superior performance.
These transformers are widely used in power plants, substations, and similar applications. Key components include the magnetic core, coil, tank, oil preservation system, and cooling system. The tank is hermetically sealed to maintain oil integrity and prevent contamination.
The insulation system is engineered for high reliability, excellent heat resistance, and strong mechanical durability. The magnetic core features a five- or six-column design that provides enhanced structural strength. The coil utilizes a modern interleaved winding structure, which helps reduce short-circuit harmonic losses, increases short-circuit and impulse voltage withstand capabilities, and minimizes operational noise.
The primary function of a power transformer is to transfer electrical energy between circuits by stepping voltage levels up or down through the principle of electromagnetic induction. It is important to note that power transformers operate exclusively with alternating current (AC); they do not convert AC to direct current (DC) or vice versa. Devices that perform AC-DC or DC-AC conversions are known as rectifiers and inverters, not transformers.
Transformers work by using electromagnetic induction to change the voltage of AC electricity through magnetic fields in their core and windings. This fundamental technology is also widely used in various electronic devices, including televisions, computers, and precision measuring instruments, where voltage regulation and signal isolation are required.
Difference Between Power Transformer and Distribution Transformer
Power transformers have a voltage rating of more than 1 kV and can withstand short circuit currents up to a few hundred amperes. In comparison, distribution transformers have a voltage rating of less than 1 kV and can withstand short circuit currents up to tens of amperes.
