Super Premium Efficiency Oil Filled Three Phase Pole Mounted Distribution Transformer, Efficiency Level 1

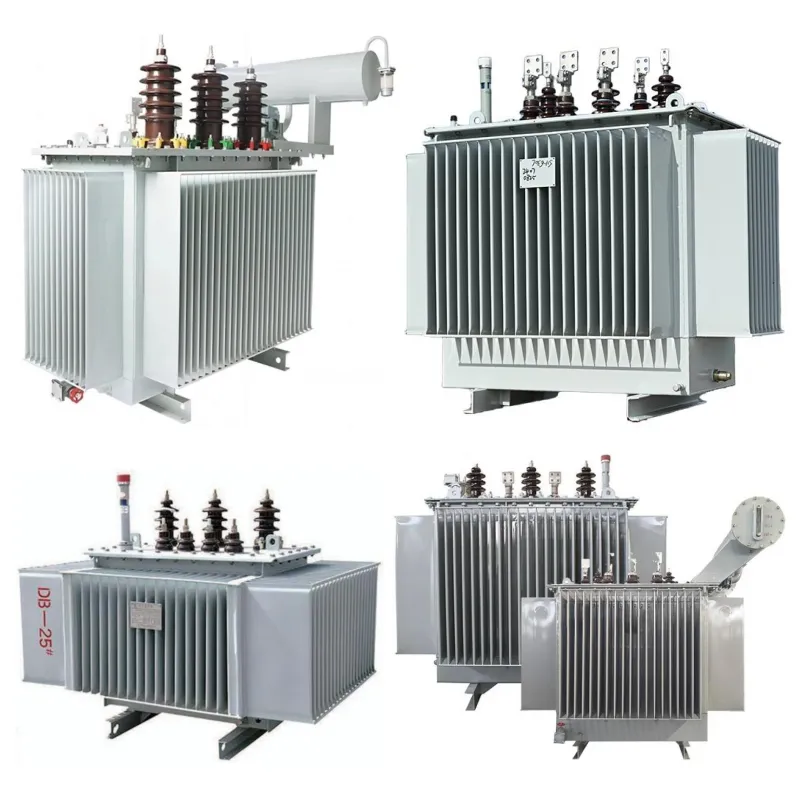

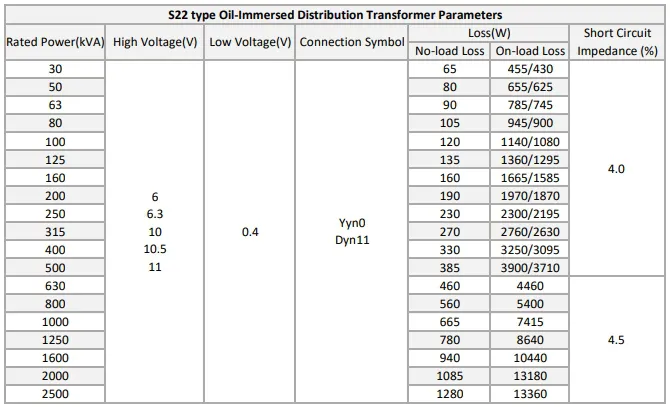

The S22 series oil-immersed transformers are constructed using high-quality 30P series silicon steel from Shougang and Shanghai Baosteel, featuring foil-wound electromagnetic coils and advanced insulation materials and processes. These transformers are designed with high heat resistance, high impact resistance, and a fully sealed structure to ensure stable transformer oil quality, extending maintenance intervals. The entire oil tank is composed of wavy chip radiators, treated with phosphating and double-layer anti-rust coating, providing excellent aging resistance. The S22 series is a new energy-efficient transformer with a rated capacity ranging from 30KVA to 2500KVA, suitable for power systems operating at voltages between 6KV and 11KV, making it the primary equipment for small and medium-sized substations.

·IEC 60076 Standard System for Power Transformers

·GB 1094 Power Transformer

·GB/T 15164 Oil-immersed power transformer load guide

·GB/T 6451 Three-phase oil-immersed power transformer technical parameters and requirements

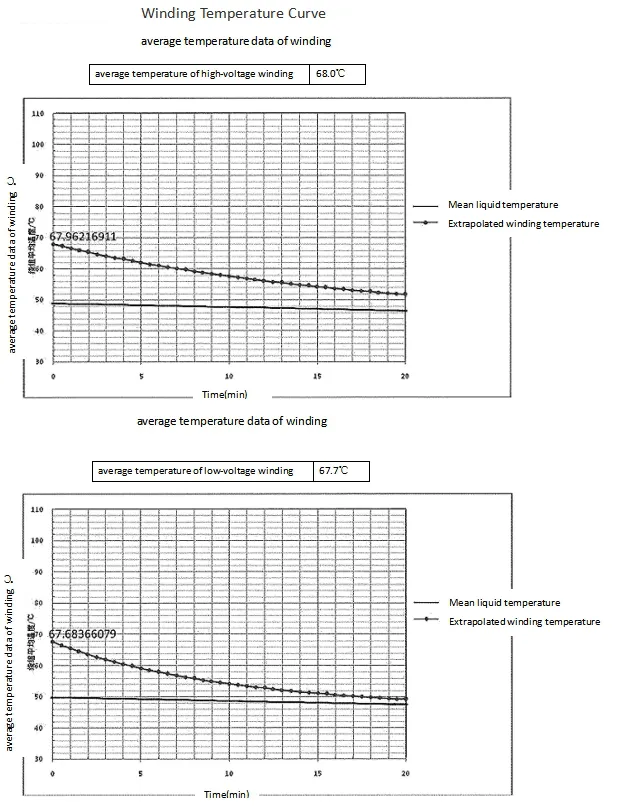

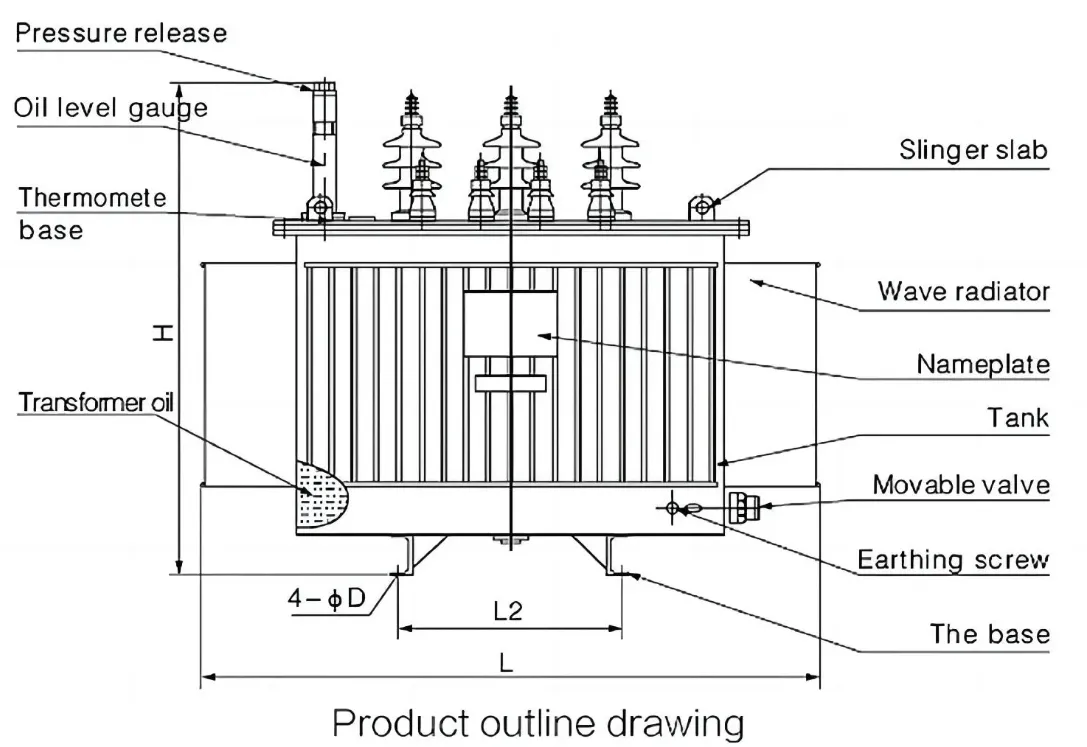

·The S22 series fully sealed oil-immersed transformers utilize wavy tank fins as cooling elements. This design isolates the internal transformer components from the atmosphere, preventing moisture and aging-related deterioration of oil and insulation, thereby enhancing operational reliability.

·The oil tank is expertly welded, ensuring smoothness, flatness, and uniform thickness to prevent oil leakage.

·The core employs 0.23mm high-permeability laser-scribed plates and a stepped five-stage slot structure, reducing no-load loss and current. Lock nuts secure the core tension and clamping.

·High-voltage windings use multi-layer wire with special interlayer insulation materials to improve mechanical strength. Low-voltage windings are either single-layer or new coil, utilizing dot tape for interlayer insulation and formed end rings for full support, ensuring gap-free construction and robust mechanical strength.

·For pressure protection, pressure relief valves are selected. Gas protection utilizes QJ4 gas relays for transformers above 800kVA. Transformers above 1000kVA feature signal thermometers for remote oil temperature monitoring.

·High Efficiency: Optimized core and coil structures reduce reluctance and copper loss, improving conversion efficiency. No-load loss is 20% lower than S13 transformers, and load loss is 30% lower, meeting national energy efficiency standards.

·Low Noise: Core and coil optimizations result in noise levels below 60dB, reaching domestic advanced standards. Special designs can be made upon user request to meet specific grid requirements.

·Compact Design: High-quality materials and manufacturing processes enable higher power density, resulting in smaller size and weight.

·Environmental Protection and Energy Saving: Reduced losses minimize heat and CO2 emissions, meeting environmental standards while lowering operational costs and improving grid efficiency.

·Safety and Reliability: High-quality materials and manufacturing ensure superior safety, reliability, and durability.

· Cost-Effective Maintenance: Modular design reduces maintenance costs and enhances practicality.
